生理学_细胞功能
细胞功能
- Transmembrane transport
- Passive transport
- Simple diffusion
- non-polar (lipid-soluble) molecules / small polar molecules without charges
- high → low
- 不消耗ATP
- Facilitated diffusion
- lipid-insoluble molecules
- high → low
- 不消耗ATP
- channels
- 4 type
- Voltage-gated ion channel
- Ligand-gated ion channel
- Mechanically-gated ion channel
- Water channel- aquaporin
- 2 property
- ion selectivity
- gating
- 4 type
- carriers
- conformational change
- saturation
- Simple diffusion
- Active transport
- Primary active transport
- Consume ATP directly

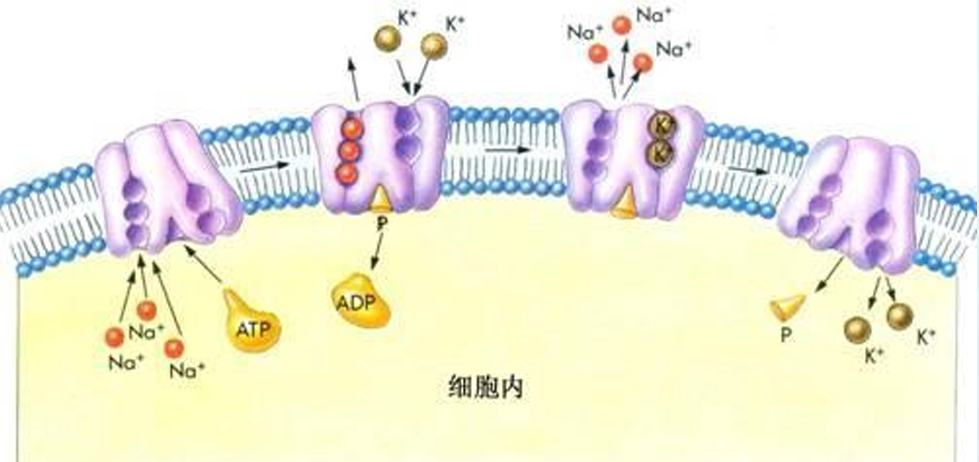

- Na+-K+ pump transports 3Na+ out of and 2K+ into the cell against the ionic gradients, by converting ATP into ADP

Therefore, N+-K+ pump is also called N+-K+ ATPase
- Secondary active transport
- Consume energy stored in ionic gradients
- Primary active transport
- Vesicular Transport
- Exocytosis
- constitutive exocytosis
- regulated exocytosis
- Endocytosis
- Phagocytosis (solid)
- Pinocytosis (liquid)
- Exocytosis
- Passive transport
- Signal transduction
- Communication between/within cells via a series of molecules
- Regulates cellular functions and maintain homeostasis
- Receptors, ligands and effectors效应蛋白 are key components in the process of signal transduction
- Bioelectricity
- 外正内负,动作时钾出纳进

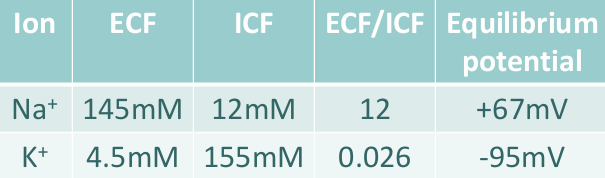

- Resting Membrane Potential
RMP- The higher the permeability of an ion is, the more it contributes to the resting membrane potential
- K+ 的 permeability 更好
- RMP close to the equilibrium potential of K+ ≈ -70mV
- factor
- ①Na+-K+ pump
- ②[K+]o
- ③K+/Na+ permeability
- The higher the permeability of an ion is, the more it contributes to the resting membrane potential

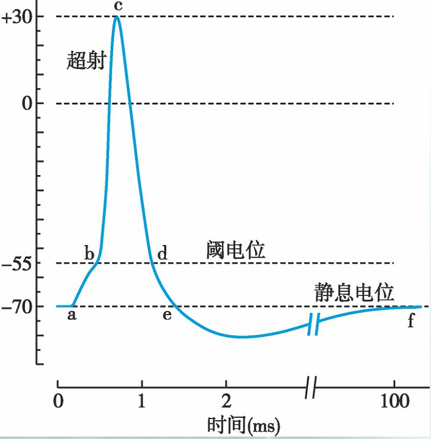

- Action Potential
AP- Only happens in excitable cells, namely muscle cells and neurons
- 图例
- 图例
- abc: depolarization
- cde: repolarization
- ef: hyperpolarization
- -55 threshold potential阈值
- 图例

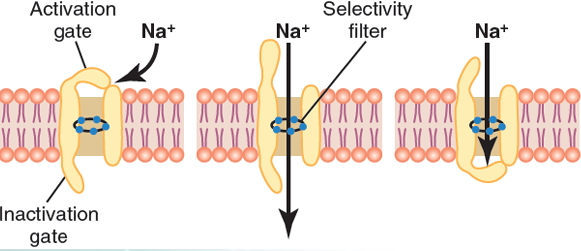

- Na+ channel
- 图
- ①below or at-70mV: activation gate closes, inactivation gate opens; channel closes, no Na+ current, in resting state
- ②at-55mV: activation gate suddenly opens, inactivation gate stays open; channel opens, inward Na+ current, in activated state.
- ③-55→+30mV: activation gate opens, inactivation gate slowly closes; channel stays open, inward Na+ current, in activated state.
- ④at +30mV: activation gate opens, inactivation gate completely closes and “locked”; channel closes, no Na+ current, in inactivated state.
- ⑤+30→-70mV: activation gate opens, inactivation gate stays close and “locked”; channel closes, no Na+ current, in inactivated state.
- 图

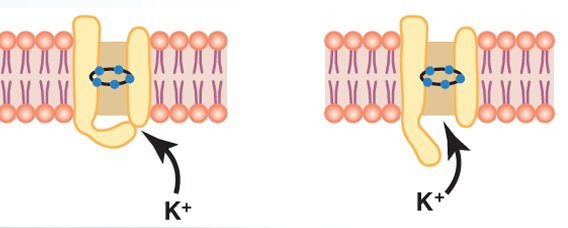

- K+ channel
- 图
- ①below -70mV: channel closes, no K+ current.
- ②-70→+30mV: channel slowly opens, but still no K+ current.
- ③+30→-70mV: channel fully opens, outward K+ current.
- 图

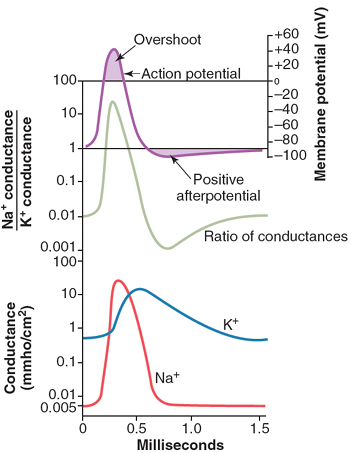

- 过程
- 图
- 先Na+进导致动作电位,再K+出缓慢恢复
- 图
- 特点
- 电信号传输过程中propagation not decay 不会衰弱
- Saltatory conduction 跳跃式传递

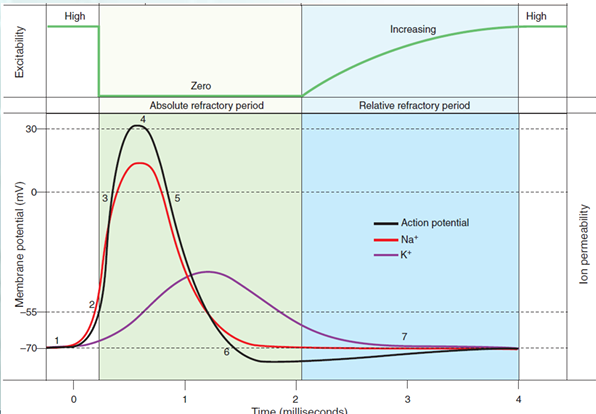

- 可被激活性excitability在激活后一段时间为0(Absolute refractory period)然后缓慢恢复(Relative refractory period)
- Muscle contraction
- 3 kind of muscle
- skeletal 骨骼肌
- cardiac 心肌
- smooth 平滑肌
- Striated muscles横纹肌 = skeletal & cardiac muscles
- Voluntary muscle随意肌 = skeletal muscle
- 组成

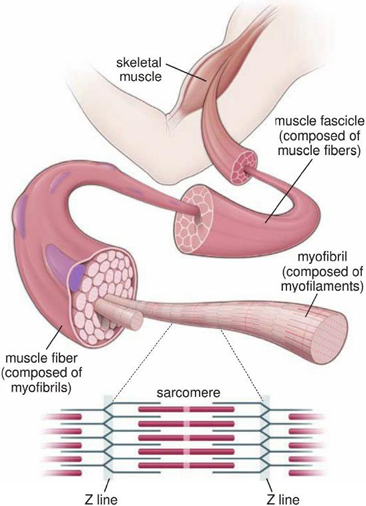

- 级别
- 图
- myofilaments排列构成sarcomere
- 好多sarcomere连在一起构成myofibrils
- sarcolemma肌膜包着myofibrils形成muscle fiber
- muscle fiber构成muscle fascicle
- 图

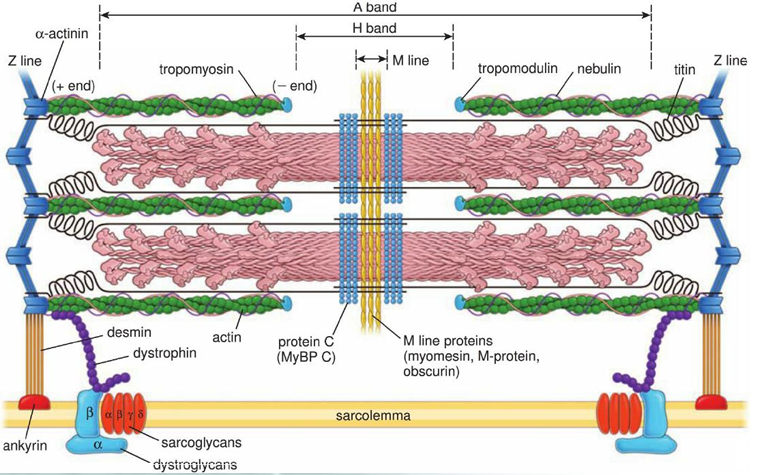

- sarcomere结构
- 图
- 一个z line到另一个z line之间是一个sarcomere
- thick filaments(myosin)连着M line
- thin filaments(actin,tropomyosin,troponin)连着Z line
- 图

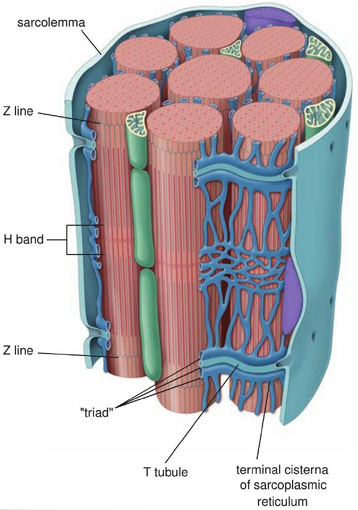

- muscle fiber / sarcotubular结构
- 图
- The sarcolemma肌膜 invaginates to form T tubules 横着的
- The sarcoplasmic reticulum肌质网 surrounds each myofibril to form L tubules 竖着的,储存着Ca2+
- L tubules become enlarged to form terminal cisterna when they meet T tubules
- Two terminal cisternae flank a T tubule, and they become a triad 三位一体
- 图
- 级别

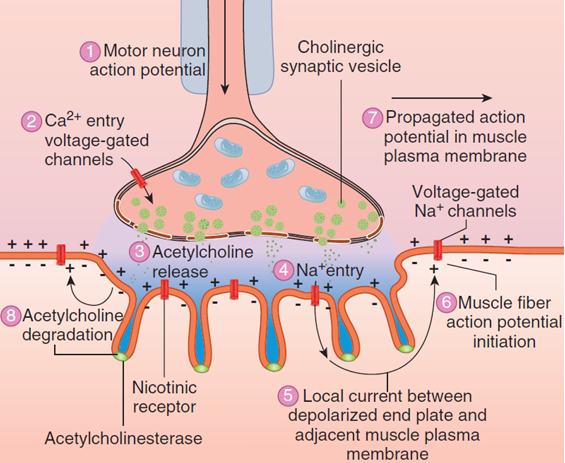

- Neuromuscular Junction
- 图
- electrical→chemical→electrical

神经递质是乙酰胆碱ACh
- electrical→chemical→electrical
- 图
- Excitation-contraction Coupling
- The process by which AP of the muscle fiber initiates contraction is called excitation-contraction coupling

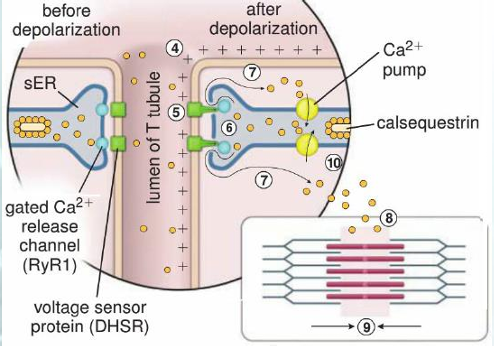

- 过程
- 图
- ④AP spreads over the plasma membrane of the muscle cell and continues via the T tubules.
- ⑤L-type Ca2+ channels in membrane of T tubules change conformation.
- ⑥At the triads, RyR is activated by the conformation change of L-type Ca2+ channel.
- ⑦Ca2+is released from the sER.
- ⑧Ca2+diffuses to the myofilaments, where it binds to TnC(troponin C).
- ⑨The actomyosin cross-bridge cycle initiated.
- ⑩Ca2+is recycled back to sER by Ca2+ pump.
- 图

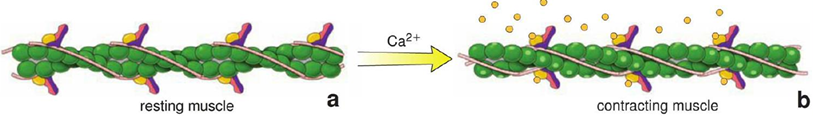

- Myofilament Sliding Theory
- 图
- 没有Ca2+的时候,tropomyosin盖住了myosin-binding site,防止myosin head bind to actin形成cross-bridge
- 有Ca2+的时候,troponin C结合Ca2+,把tropomyosin扒拉开,让actin与myosin bind

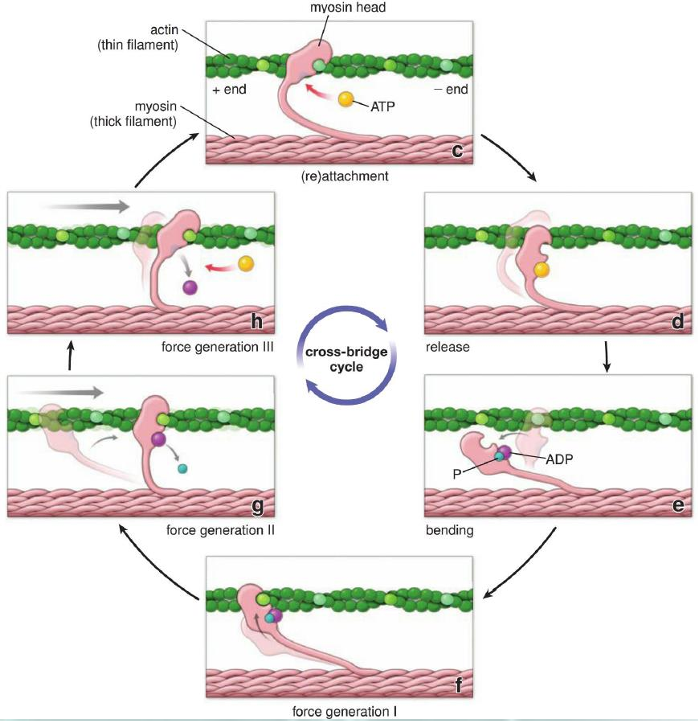

- cross-bridge cycle
- The myosin head bind to actin to form the crossbridge
- The cross-bridge keeps changing conformation while binding to different molecules, thus drags the thin filament along the thick filament.
- Eventually, the muscle contracts
- 图
- Performance of contraction
- 两种contraction

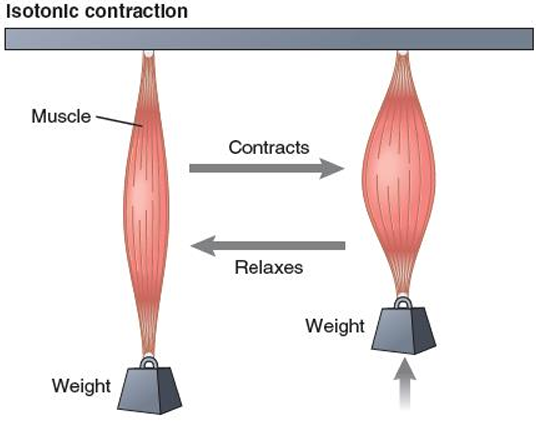

- Isotonic contraction
- the muscle shortens with constant tension
- In isotonic contraction, the contractile tension = afterload
- The heavier the load is, the slower the muscle contracts
- P = F * V

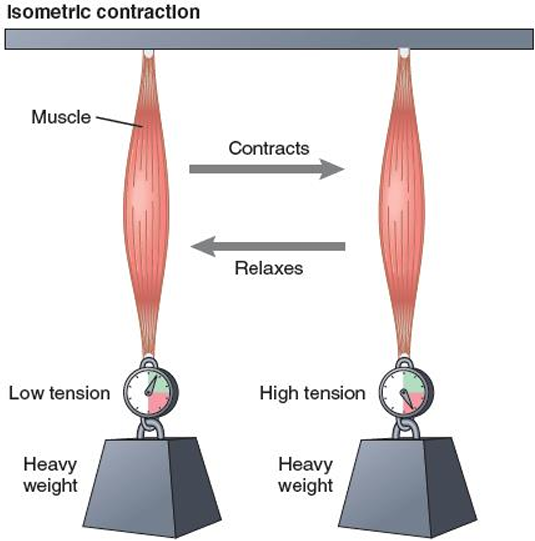

- Isometric contraction
- the muscle length doesn’t change with increased tension.
- Usually, the isometric contraction comes first, then followed by the isotonic contraction
- Isotonic contraction
- 最有力

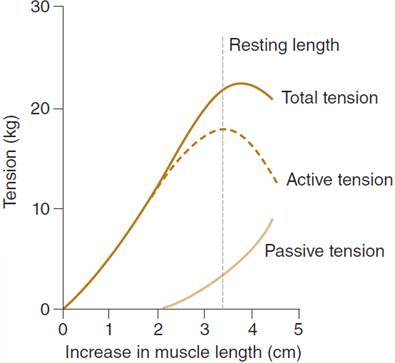

- Preload = initial length of muscle
- Optimal initial length = resting length
- 在resting length时候active tension最大,收缩更多就要有passive tension维持长度

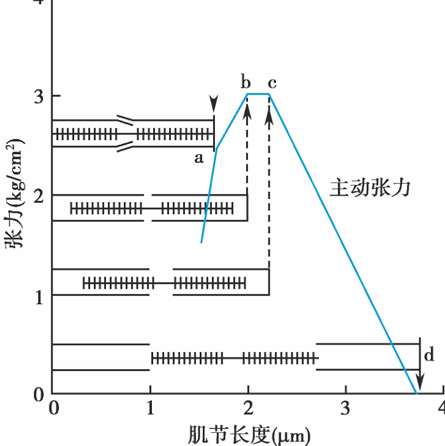

- The contraction reaches the maximum strength when the sarcomere is 2.0 ~ 2.2μM in length.
- 影响因素
- [Ca2+]i
- The activity of the cross-bridge’s ATPase
- The metabolism of the muscle cell
- The expression of contraction-related proteins

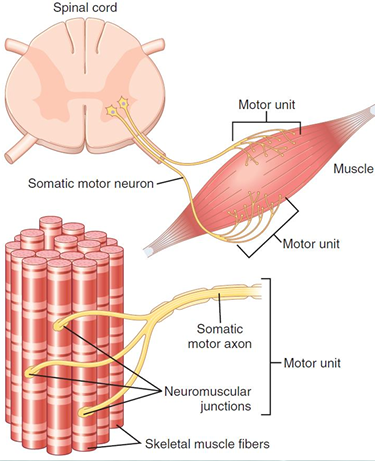

- motor unit
- A motor unit consists of a motor neuron and the group of skeletal muscle fibers it innervates
- Motor units have varied excitability
- 图

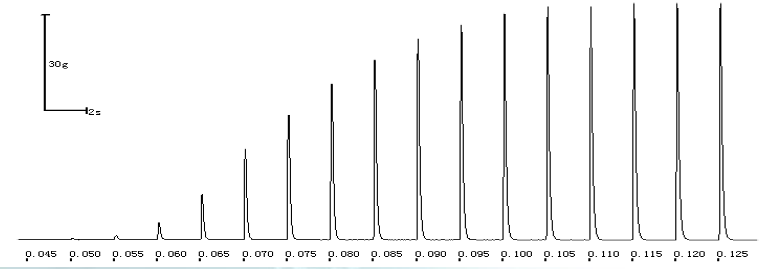

- multiple fiber summation
- When a weak stimulus is sent, fewer motor units (the smaller ones) is stimulated and the contractile tension is small
- As the stimuli grow stronger, more and more motor units (the smaller and the larger ones) are stimulated and the tension also grow stronger
- 就是很小的刺激只能激活一部分motor unit,大的刺激能激活全部motor unit

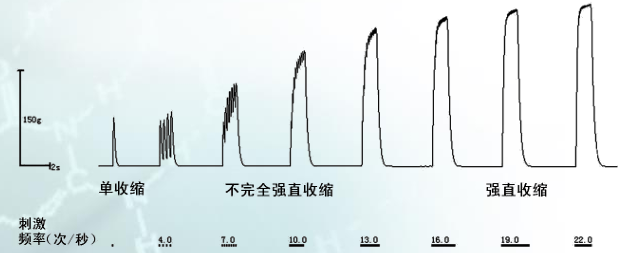

- frequency summation
- 图

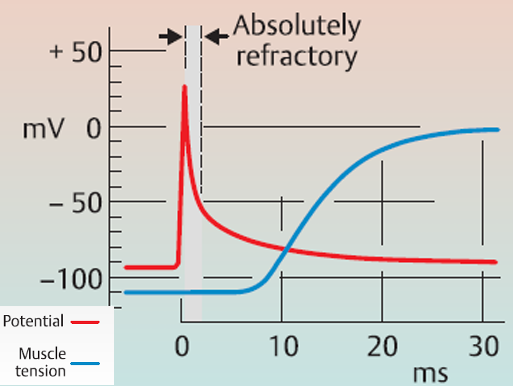

- 刺激后过一段时间肌肉才收缩,连续的刺激会导致强直收缩tetanization
- 图

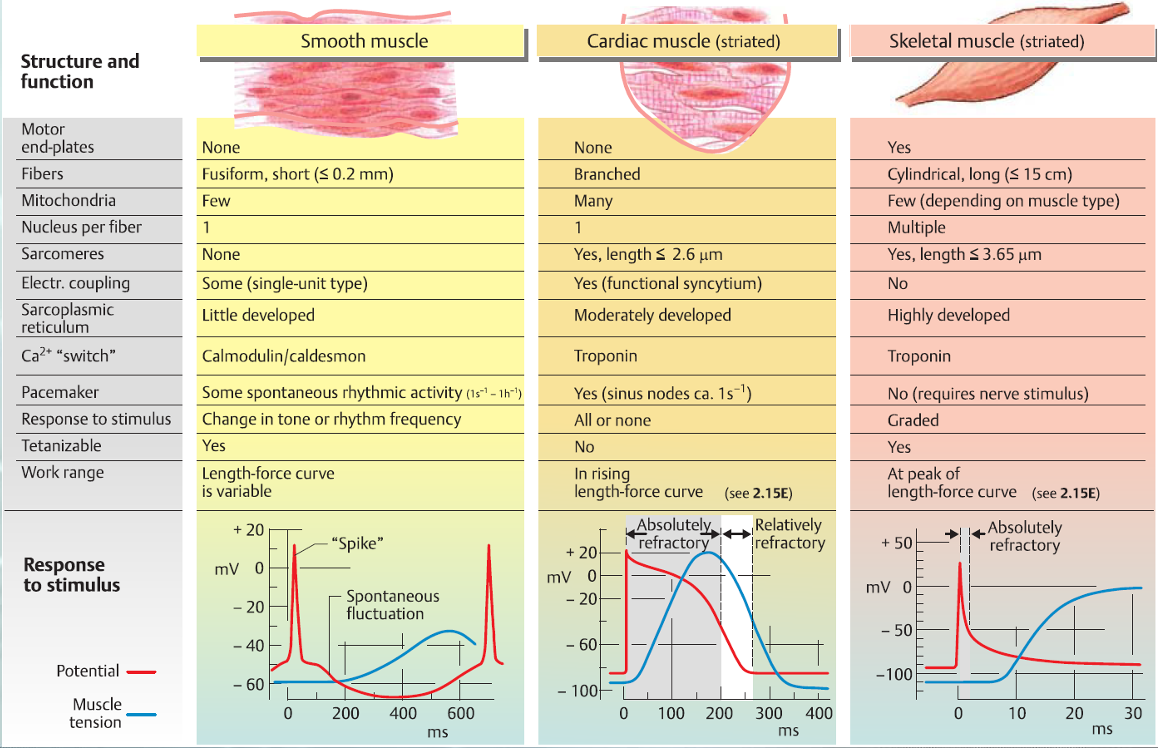

- 不同肌肉
- 图
- 图
- 两种contraction
- 3 kind of muscle
